Standard imager

查看分类

Bridge type automatic image measuring instrumentreturn

Describe:Technical parameterRemarks: When an additional objective is selected, the magnification and working distance will change

Contact us
National Advisory Hotline

0769-22265125 22265126 23104125

Product Details

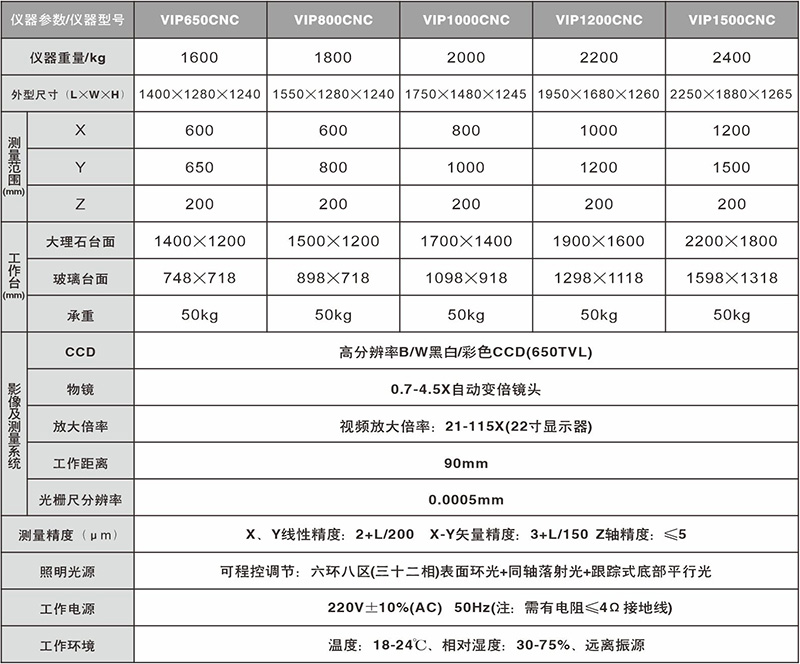

Technical parameter


Remarks: When an additional objective is selected, the magnification and working distance will change as the magnification of the additional objective changes.

Product advantages

A. Large stroke, super large stroke, support customer customized development, the maximum measuring stroke can reach 3000mm;

B. Condensing the best of the industry, high stability, high precision, XY linear accuracy: 2+L/200um;

Scope of application

It is suitable for large-scale PCB boards, film films, large-scale glass products, auto parts, mobile phone tablets, LED displays, liquid crystal displays, touch screens and other industries.

Upgrade expansion options

A. British RENISHAW contact probe;

B. Japanese KEYENCE or OMRON laser probe;

C. Special lens for large field of view navigation;

D. Pneumatic or manual tempered glass clamp;

E. The lens (light up) has the function of anti-collision and automatic back-back protection in any direction (invention patent);
